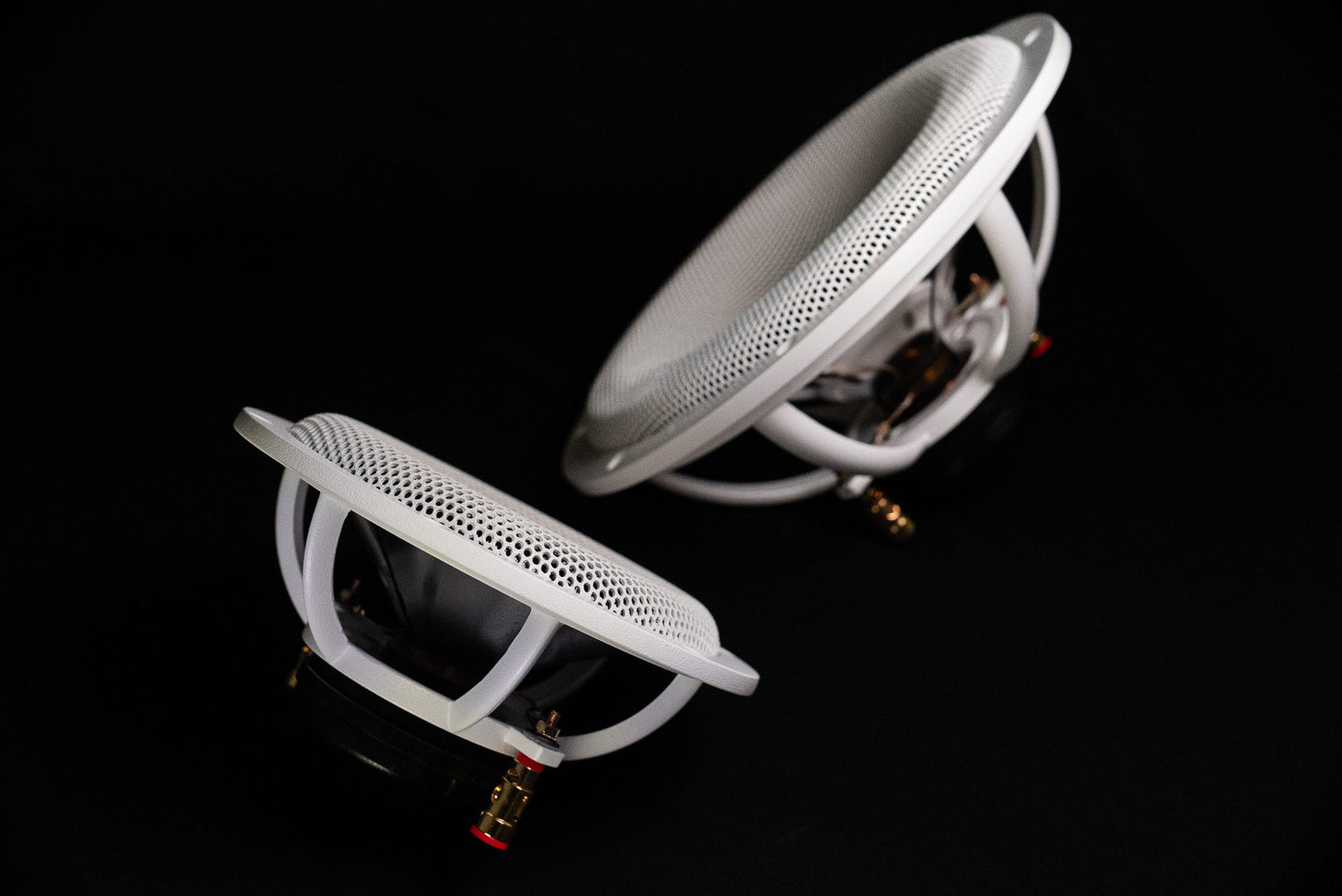

DC  GOLD  AUDIO™  speakers  are  all  single voice-coil, single cone, full-range speakers. All of our speakers are hand assembled in the USA with  quality  components  for  durability  in  all environments  including  saltwater  and  UV exposure.

They  will  continue  to  work  after  complete submersion  in water. Our  speakers are available in two versions, the Classic Line and Reference line – both using neodymium in place of the  typical  ceramic magnets  and  aluminum alloy cones with a proprietary coating.

Both  the Classic and  Reference boast a  1.5” voice-coil and  ferro-fluid cooling  for  the best sound  quality  and  power  handling.  Beryllium (a  high dampening core material)  is  used  in the  Reference  speakers  in  order  to  enhance the  smoothness  and  detail  of  sound  in ways you will not believe.

The  Reference  is  for  the  connoisseur,  where music  is  not  the  background,  but  the  main event.  Our  speakers  are  known  for  their efficiency, being able to run with nothing more than  a  decent  head  unit  (we  recommend  a minimum of 20 RMS watts per channel).



N4C
N4R



We offer the 4” in two versions: 1) N4C – Classic 2) N4R – Reference. Both sport a 1.5” voice-coil., very unique in a speaker this size. It has the volume and power to be utilized in environments that loudspeakers are not typically used; jet-skis, motorcycles, snowmobiles, spas, etc. Although its bass is limited by its size (laws of physics), it has the best bass of any 4” on the market. With a true linear excursion of 0.2” (one-way), the speaker will move more air than many 5” speakers. The speaker would be equally at home in a home theater application or mid-range in a high-end multi-way system.

Technical Information


Size
4"
Power 80W cont / 300W max
Freq. (+/-3dB) 50Hz - 19kHz 50Hz - 20kHz
Efficiency (1W / 1m)
90dB
Impedance 4 Ohm & 8 Ohm
Colors
White and Black
Weight (each) 2lbs 7oz



N5C
N5R



Our 5 ¼” comes in two version: 1) N5C – Classic 2) N5R – Reference. These are extremely fast detailed speakers. They will play loudly and cleanly. With uses ranging from boating , recreational vehicles of all sorts, home theater and high end home-stereo, this is one of our most popular speakers for a reason – they sound great.

Technical Information


Size
5 1/4"
Power 80W cont / 300W max
Freq. (+/-3dB) 40Hz - 19kHz 40Hz - 20kHz
Efficiency (1W / 1m)
91dB
Impedance 4 Ohm & 8 Ohm
Colors
White and Black
Weight (each) 2lbs 10oz



N69C
N69R



The 6x9" is a great speaker, allowing placement that will take advantage of it's unique dispersion pattern. Our Reference Line N69 has been compared to speakers from Europe costing upwards of $2000 / pair. They play loud and clear, with depth that will surprise you. Many people have forgone subwoofer after hearing a set of these.

Technical Information


Size
6 x 9"
Power 80W cont / 300W max
Freq. (+/-3dB) 35Hz - 19kHz 35Hz - 20kHz
Efficiency (1W / 1m)
92dB
Impedance 4 Ohm & 8 Ohm
Colors
White and Black
Weight (each) 2lbs 14oz



N7C
N7R



The concept behind the 7" was to be the highest end full-range in the world. Built to be durable enough for the marine market and to have the finesse to fit in a high-end home system. This speaker has been compared to and exceeded some of the finest speakers in the world. In a home stereo setting it can convey the live event like no other. In your car or boat it will exceed your expectations.

Technical Information


Size
7"
Power 80W cont / 300W max
Freq. (+/-3dB) 35Hz - 19kHz 35Hz - 20kHz
Efficiency (1W / 1m)
92dB
Impedance 4 Ohm & 8 Ohm
Colors
White and Black
Weight (each) 2lbs 15oz



N9.5C
N9.5R



If you want the deepest bass we offer, then the N9.5 is for you. It is not a subwoofer, but a 9.5" full-range speaker that will impress you with its depth and clarity. It will play loudly with very few watts of power, but put a decent amplifier behind it and listen to it crank out the tunes. The Reference adds finesse to the mid-range and treble, making it suitable for those seeking a single driver full-range for home applications without the need of a separate subwoofer.

Technical Information


Size
9 1/2"
Power 80W cont / 300W max
Freq. (+/-3dB) 30Hz - 16kHz 30Hz - 19kHz
Efficiency (1W / 1m)
94dB
Impedance 4 Ohm & 8 Ohm
Colors
White and Black
Weight (each) 2lbs 10oz

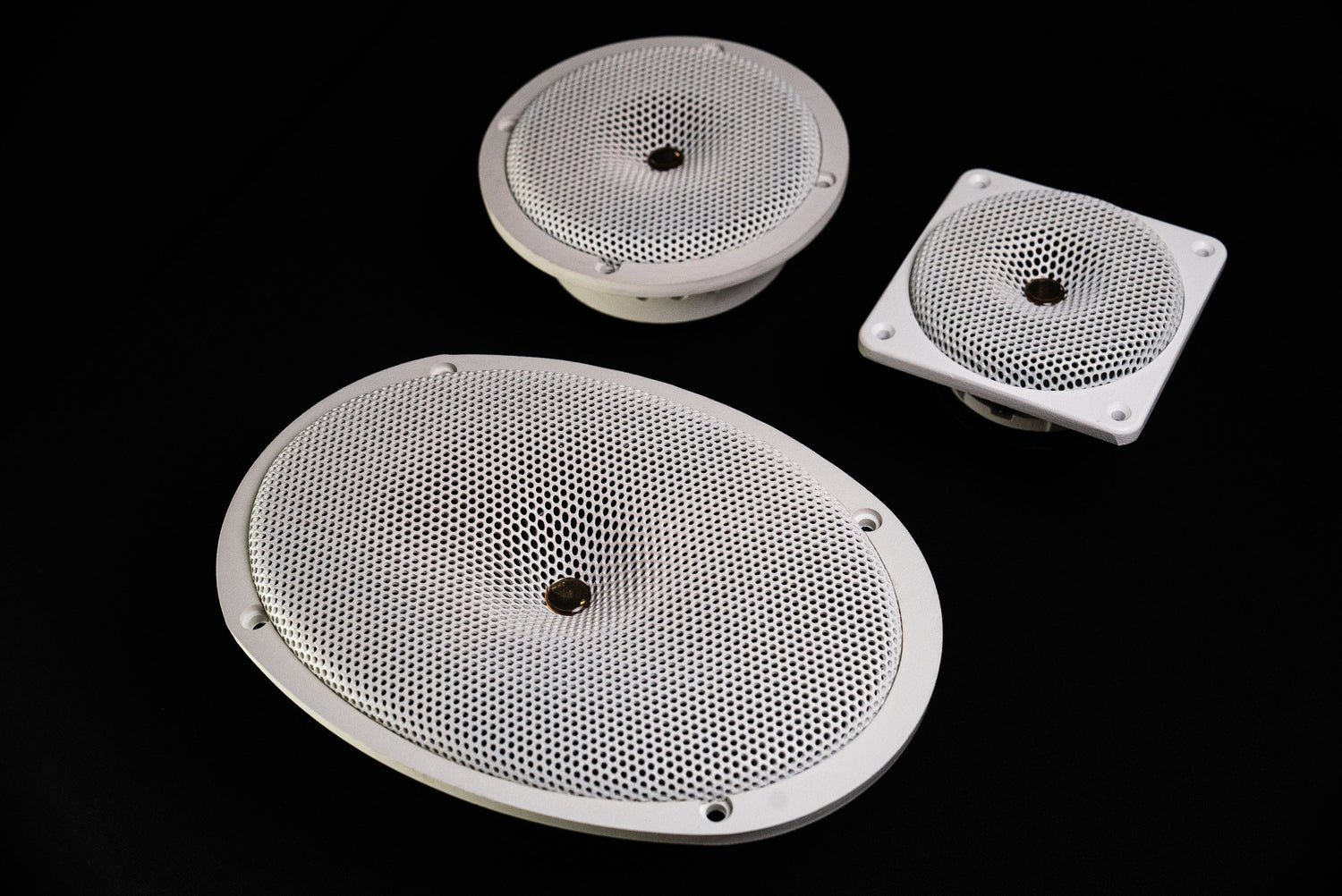

Reference Line


Size
4" 5 1/4" 6x9" 7" 9 1/2"
Power 80W cont / 300W max 80W cont / 300W max 80W cont / 300W max 80W cont / 300W max 80W cont / 300W max
Freq. (+/-3dB) 50Hz - 20kHz 40Hz - 20kHz 35Hz - 20kHz 35Hz - 20kHz 30Hz - 19kHz
Efficiency (1W / 1m)
90dB 91dB 92dB 92dB 94dB
Weight (each) 2lbs 7oz 2lbs 10oz 2lbs 14oz 2lbs 15oz 3lbs 1oz
Impedance 4 Ohm and 8 Ohm
Colors
White and Black

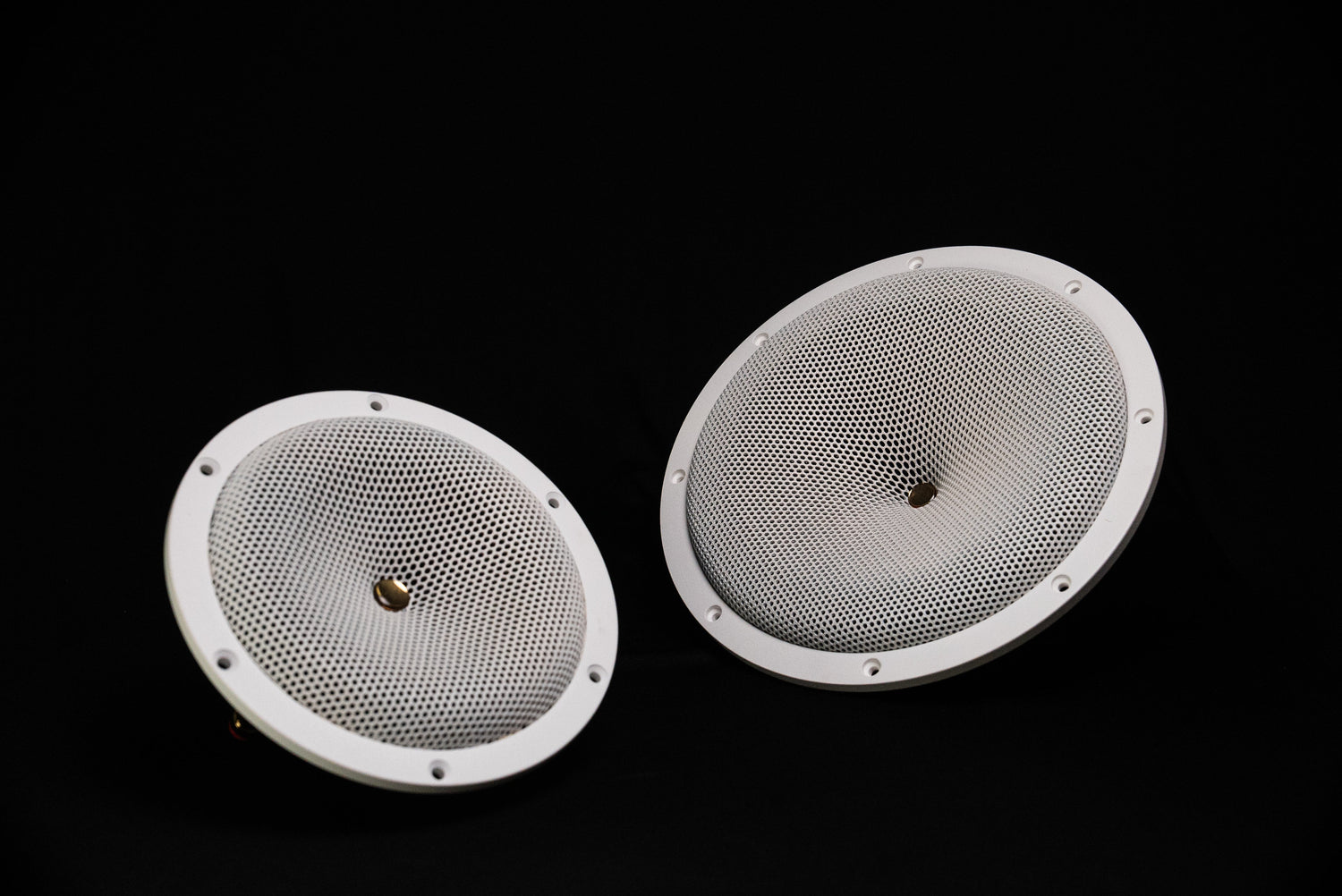

Classic Line


Size
4" 5 1/4" 6x9" 7" 9 1/2"
Power 80W cont / 300W max 80W cont / 300W max 80W cont / 300W max 80W cont / 300W max 80W cont / 300W max
Freq. (+/-3dB) 50Hz - 19kHz 40Hz - 19kHz 35Hz - 19kHz 35Hz - 19kHz 30Hz - 16kHz
Efficiency (1W / 1m)
90dB 91dB 92dB 92dB 94dB
Weight (each) 2lbs 7oz 2lbs 10oz 2lbs 14oz 2lbs 15oz 3lbs 1oz
Impedance 4 Ohm and 8 Ohm
Colors
White and Black
